2018-2024 Jeep Wrangler JL Rubicon 2.0L Turbo 241 Roctrac T/C Heavy Duty 1350 Double Cardan Rear Driveshaft with Double Cardan Joint, 4 Door Automatic Transmission Reel Driveline

$799.00

Compare

Share this product

Description

Heavy Duty 1350 Double Cardan Rear Driveshaft for a 2018-Present Jeep JL Rubicon 2.0L Turbo 241 Roctrac T/C 4 door with automatic transmission. Powertrain is installed at 9.25 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.
Details:

  • Collapsed Length 45.25 inch
  • Ride Height 46.75 inch
  • Extended Length 48.25 inch
  • U Joint Style 1350 W/O ZERK
  • Tube size 3.00X .083 Inch
  • Pinion/Yoke 2-4-3124R
  • T/C Yoke 2-4-5341-10R

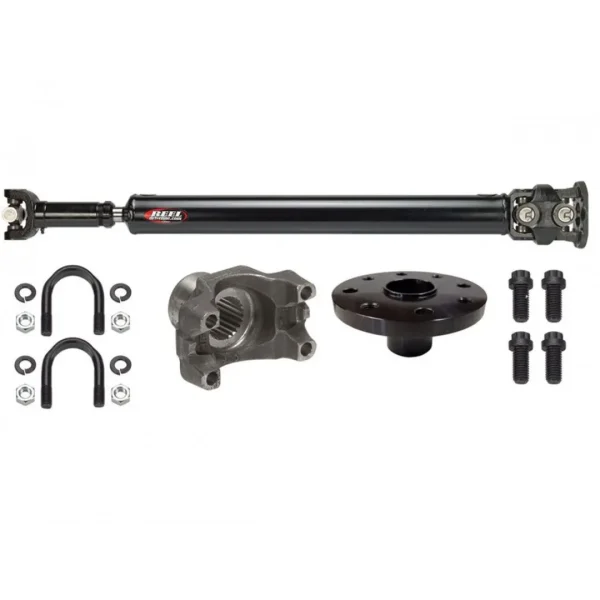

Kits Include:

  • Pinion Yoke
  • Transfer Case Yoke
  • Retaining Hardware
  • Fastners Included

Additional information

Weight 30 lbs
Dimensions 6 × 52 × 6 in
Availability

Available

Universal

No

Vehicle Type
