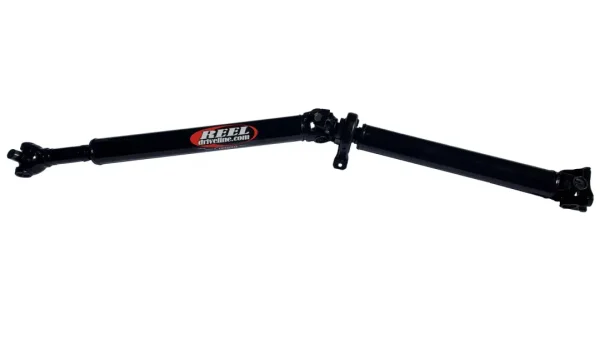

Jeep JT Gladiator 1350 Heavy Duty Rear Driveshaft 18-Pres Gladiator Manual Trans Reel Driveline

$1,450.00

Compare
SKU: 3519JTR-4RMNCV Categories: ,

Share this product

Description

1350 Heavy Duty rear driveshaft for 4 door Jeep JT Gladiator models with an manual transmission. Replacement Driveline. This System is stronger than O.E. type applications recommended for stock to 6 1/2 inch lift.

J.E. Reel Drivelines are designed to work with 2 1/2 inch and 4 1/2 inch lifts from most lift manufacturers. Lifts higher than 4 1/2 inch or long arm lifts must be measured for driveline length. It is best to measure all drivelines if possible.

The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.

Note: JT Gladiator 2018 Powertrain is installed at 9.25 Degree. This means the Transfer Case rear output slopes down to rear axle and front output slopes up away from front axle. This model does not come with CV and is suitable for stock height up to 2 1/2 inch lift.

Details:

  • Collapsed Length 35.75 inch
  • Ride Height 28.5 inch
  • Extended Length 38.75 inch
  • U Joint Style 1350 W/O ZERK
  • Tube size 3.00X .083 Inch
  • Pinion/Yoke 3-4-3528R
  • T/C Yoke 3-1-32R

Kits Include:

  • Pinion Yoke
  • Transfer Case Yoke
  • Retaining Hardware
  • Fastners Included

Additional information

Weight 63 lbs
Dimensions 42 × 12 × 8 in
Availability

Available

Universal

No

Vehicle Type
