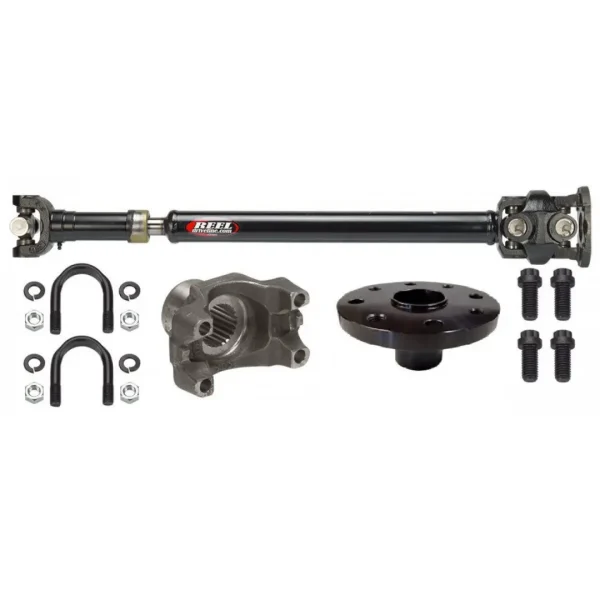

2018-2023 Jeep Wrangler JL 1350 Heavy Duty Front Driveshaft with Double Cardan Joint, 2 or 4 Door Manual Transmission

$779.00

Compare

Share this product

Description

Heavy Duty JL 2018-Present Powertrain is installed at 9.25 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.
Details:

  • Collapsed Length 35.375 inch
  • Ride Height 36.875 inch
  • Extended Length 38.375 inch
  • U Joint Style 1350 W/ ZERK
  • Tube size 2.00X.120 Inch
  • Pinion/Yoke 2-4-3124R
  • T/C Yoke 2-4-5341-10R

Kits Include:

  • Pinion Yoke
  • Transfer Case Yoke
  • Retaining Hardware
  • Fastners Included

Additional information

Weight 26 lbs
Dimensions 52 × 6 × 6 in
Availability

Available

Universal

No

Vehicle Type
