Jeep JK 1310 Heavy Duty Front Driveshaft 12-18 Wrangler JK Automatic Transmission Reel Driveline
$629.00
This system is a stronger than O.E. type applications recommended for stock to 3.5 inch lift and up to 35 inch tires for MILD USE ONLY. At 35 inch tires or lifts 4.5 in or greater it is strongly recommended to use the 1350 drivelines.
Description
1310 Heavy Duty front driveshaft for 2 and 4 door Jeep JK models with an automatic transmission. This system is a stronger than O.E. type applications recommended for stock to 4.5 inch lift and up to 35 inch tires for mild use.
2 door models with 4.5 inch of lift are recommended to use our 1350 rear driveline. J.E. Reel Drivelines are designed to work with 2.54.5 inch lifts from most manufactures. Lifts higher than 4.5 inch or long arm lifts must be measured for driveline length.

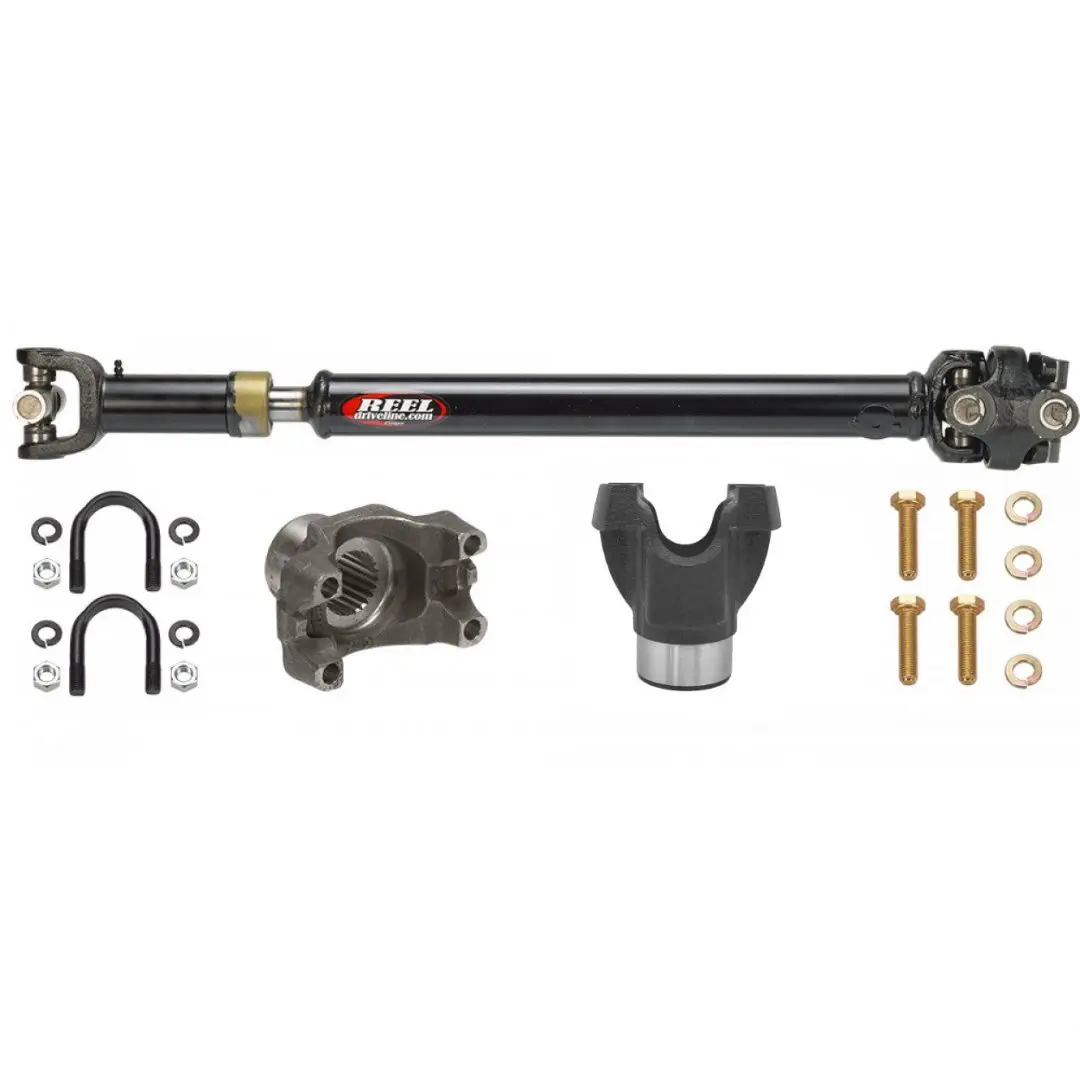

Kit Includes:
- 2 inch x.120 Tubing
- 1310 U-Joints
- Cast U-Bolt Style Yoke
- 1310 U-bolts
- T/C Yoke
- Grade 8 Hardware
- Installation Instructions
Requirements:
- 0-4.5 inch short arm suspension kit installed.
- Dana 44 or Dana 30 Front axle
- Up to 35 inch tires
If you have an application other then the requirements listed above you can still order this kit but you will need to provide us with measurements on how to build your custom driveline. The pricing will remain the same.
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 52 × 8 × 8 in |
| Availability | Available |
| Universal | No |
