2018-2024 Jeep Wrangler JL Rubicon 3.0L Diesel 241 Roctrac T/C 1350 Heavy Duty Front Driveshaft with Double Cardan Joint, 2 or 4 Door Automatic Transmission Reel Driveline

Description

Heavy Duty 1350 Double Cardan Front Driveshaft for a 2018-Present Jeep JL 3.0L Diesel 241 Roctrac T/C 2 or 4 door with automatic transmission. Powertrain is installed at 9.25 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.

Details:

• Collapsed Length 36.5 Inch
• Ride Height 38 Inch
• Extended Length 39.5 Inch
• U Joint Style 1350 W Zerk
• Tube size 2 x .120 Inch
• Pinion/Yoke 3-4-3528R
• T/C Yoke 3-4-JLR

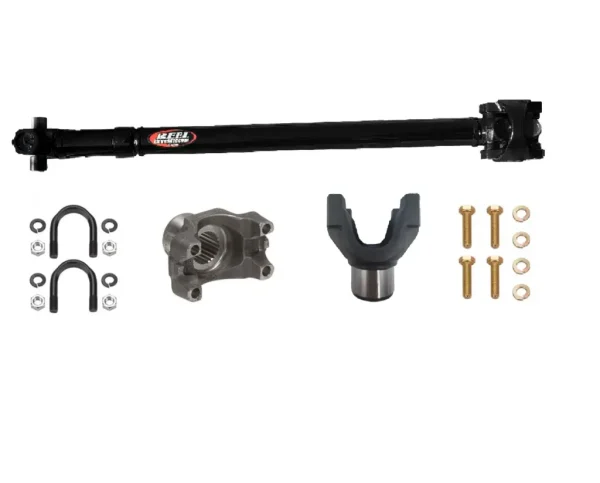

Kits Include:

• Pinion Yoke
• Transfer Case Yoke
• Retaining Hardware
• Fastners Included
