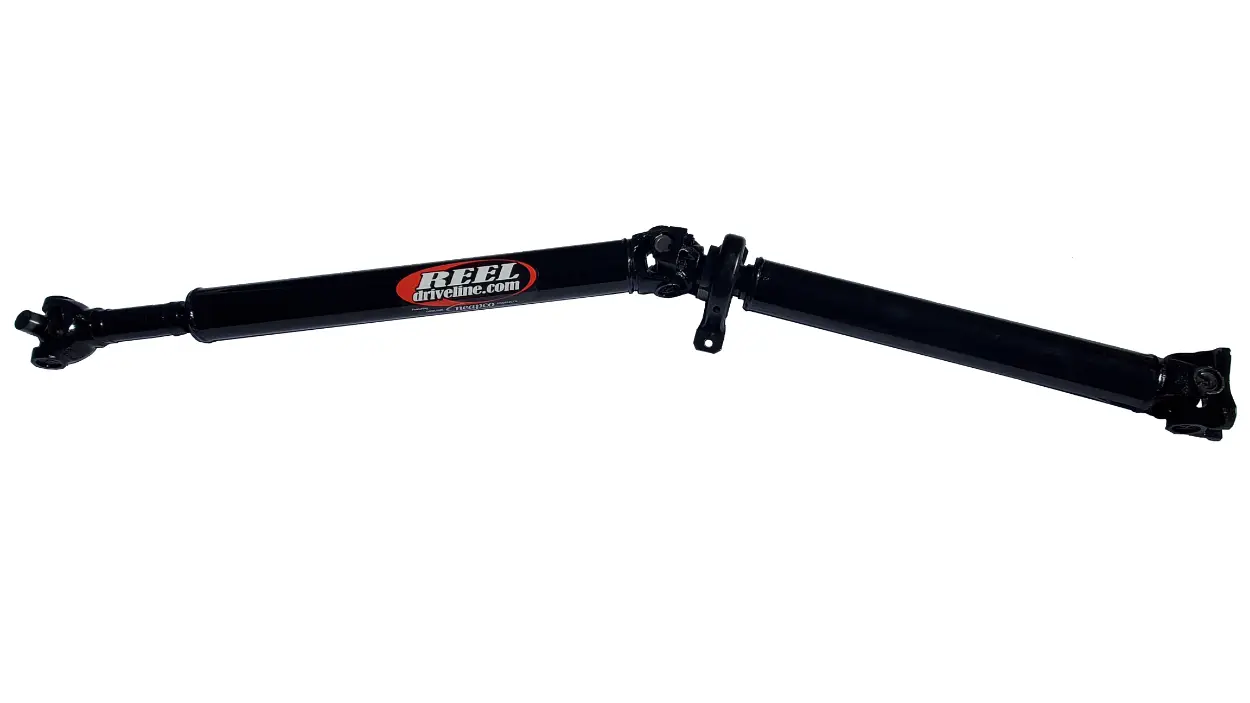

2019-2024 Jeep JT Gladiator 30.L Diesel Heavy Duty 1350 Double Cardan Rear Driveshaft (Non-CV), Automatic Transmission Reel Driveline

Description

Heavy Duty 1350 Double Cardan Rear driveshaft for 4 door Jeep JT Gladiator 3.0L Diesel models with an automatic transmission. Replacement Driveline. This System is stronger than O.E. type applications recommended for stock to 6 1/2 inch lift.

J.E. Reel Drivelines are designed to work with 2 1/2 inch and 4 1/2 inch lifts from most lift manufacturers. Lifts higher than 4 1/2 inch or long arm lifts must be measured for driveline length. It is best to measure all drivelines if possible.
The purchaser shall be responsible to determine all design and/or specification parameters and the suitability of any particular product for its intended use.

Note: JT Gladiator2018 Powertrain is installed at 9.25 Degree. This means the Transfer Case rear output slopes down to rear axle and front output slopes up away from front axle. This model does not come with CV and is suitable for stock height up to 2 1/2 inch lift.
Details:

• Collapsed Length 35.75 inch
• Ride Height 28.5 inch
• Extended Length 38.75 inch
• U Joint Style 1350 W/O ZERK
• Tube size 3.00X .083 Inch
• Pinion/Yoke 3-4-3528R
• T/C Yoke 3-1-32R

Kits Include:

• Pinion Yoke
• Transfer Case Yoke
• Retaining Hardware
• Fastners Included
