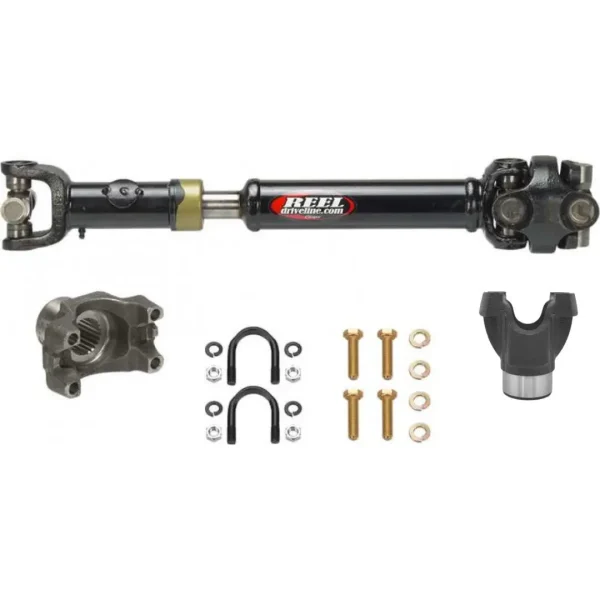

2018-2023 Jeep Wrangler JL Sport 2.0L Turbo Heavy Duty 1350 Double Cardan Rear Driveshaft with Double Cardan Joint, 2 Door Automatic Transmission Reel Driveline

$740.05

Compare

Share this product

Description

Heavy Duty 1350 Double Cardan Rear Driveshaft for a 2018-Present Jeep JL Sport 2.0L Turbo 2 door with automatic transmission. Powertrain is installed at 9.25 Inch. JK 2012-2018 and JL 2018 Powertrain is installed at 9.25 Inch. This means the Transfer Case rear output slopes down to the rear axle and the Transfer Case front output slopes up away from the front axle. This is especially important to consider on the 2012-2016 model JK and 2018 model JL. Maximum Angle: 1310 C.V. Less than 26 Inch and 1350 C.V. Less than 32 Inch.

Details:

  • Collapsed Length 22.375 Inch
  • Ride Height 23.875 Inch
  • Extended Length 25.375 Inch
  • U Joint Style 1350 W Zerk
  • Tube size 2.00X.120 Inch
  • Pinion/Yoke 2-4-3124R
  • T/C Yoke 2-4-5341-10R

Kits Include:

  • Pinion Yoke
  • Transfer Case Yoke
  • Retaining Hardware
  • Fastners Included

Additional information

Weight 24 lbs
Dimensions 52 × 6 × 6 in
Availability

Available

Universal

No

Vehicle Type
